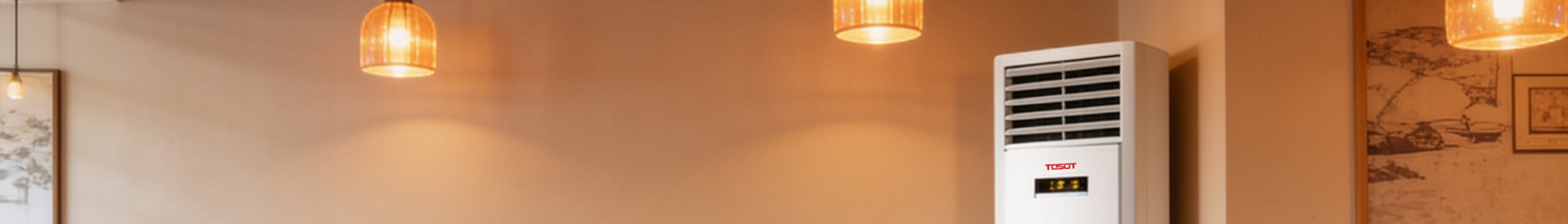

TMV – Floor Standing Type
Floor StandingTMV – Floor Standing Type
🏠 Residential AC
🏢 Commercial AC
A Powerful, wide-coverage cooling with quiet operation and personalized comfort control.
Key Features
- Up and Down Swing, Long Air Supply Distance
- Washable Filter
- Quiet Design
- Strong and Fast
- I Feel Function
- Multiple Protection Functions
Available Capacity
₱90,995
Specifications
| TMV-ND100L/A-T | Value | |
|---|---|---|
| Capacity | HP | 3.6 HP |
| Power Supply | V / Ph / Hz | 220v/1ph/60hz |
| Air Flow | CMH | 1,850/1,600/1,400 |
| Sound Pressure Level | dB(A) | 50/48/46 |
| Ref. Pipe Size | inch | 3/8"; 5/8" |
| Drain Pipe | inch | 1' |
| Dimensions | IDU (WxDxH) | mm | 580x400x1,870 |
| Net Weight / Gross Weight | kg | 54/74 |
| Power Input | W | 200 |
| Rated Current | A | 0.9 |
| Breaker Size | A | 6A |
| Power Supply Wire Size | AWG x Qty | AWG #12 X 2 |
| Communication Wire Qty. | AWG x Qty | AWG #18 X 2 |
₱100,995
Specifications
| TMV-ND140L/A-T | Value | |
|---|---|---|
| Capacity | HP | 5.0 HP |
| Power Supply | V / Ph / Hz | 220v/1ph/60hz |
| Air Flow | CMH | 1,850/1,600/1,400 |
| Sound Pressure Level | dB(A) | 50/48/46 |
| Ref. Pipe Size | inch | 3/8"; 5/8" |
| Drain Pipe | inch | 1' |
| Dimensions | IDU (WxDxH) | mm | 580x400x1,870 |
| Net Weight / Gross Weight | kg | 57/77 |
| Power Input | W | 200 |
| Rated Current | A | 0.9 |
| Breaker Size | A | 6A |
| Power Supply Wire Size | AWG x Qty | AWG #12 X 2 |
| Communication Wire Qty. | AWG x Qty | AWG #18 X 2 |
